5 channel 8A Zigbee enabled LED Driver

This LED Driver is a Zigbee 3.0 based 4‑in‑1 LED lighting device with 5‑channel output which can control RGB + CCT, RGBW, tunable white, and single‑color LED lights. The device can search and pair to a Zigbee network and be controlled from your controller or hub interface. Internet remote control option via smart phone, computer, or tablet extends your control convenience. The Zigbee LED dimmer is compatible with universal Zigbee gateways or coordinators. It can directly pair to Zigbee remotes through TouchLink commissioning. In addition, once compatible Zigbee remotes are added to the same network, they can bind to and be controlled by the remotes.
The Zigbee device is based on Zigbee 3.0. It can be linked to and controlled by max. 30 Zigbee remotes that support Zigbee Light Link through TouchLink. It also supports the new Zigbee Green Power feature, and can bind to and be controlled by max. 20 Zigbee Green Power switches directly without a Zigbee hub or gateway.
It is designed with DC 12–48 V input and 5‑channel constant‑voltage output; max. output current per channel can be up to 8 A. DIP switches are used to select a device type from the 4 device types: RGB + CCT, RGBW, tunable white, or single color.

Key Features:

• 4-in-1 multi-mode control: RGB + CCT, RGBW, tunable white, or single-color output
• 5-channel constant-voltage output, up to 8 A per channel
• Zigbee 3.0 compliant, with robust mesh networking
• Universal gateway compatibility, works with various Zigbee coordinators
• Internet remote control via phone or tablet
• TouchLink commissioning, direct pairing with Zigbee remotes
• Supports up to 30 Zigbee Light Link remotes

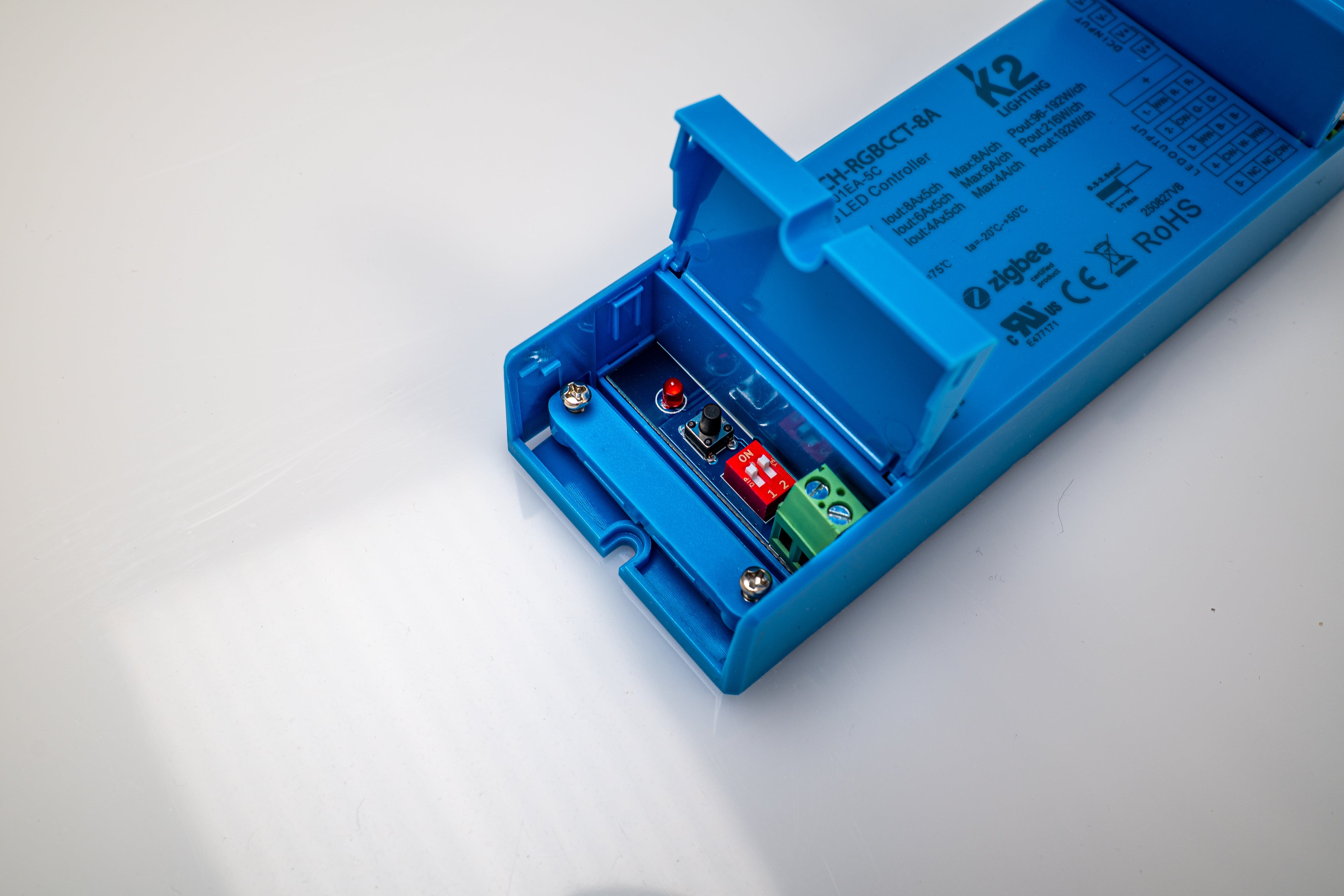

• Dual-mode device configuration via DIP switches for selecting output mode
• DC 12–48 V input, ideal for LED strip, modules, or fixtures
• Push-dim support, compatible with low-voltage push button dimming
