Door Open/Close Sensor

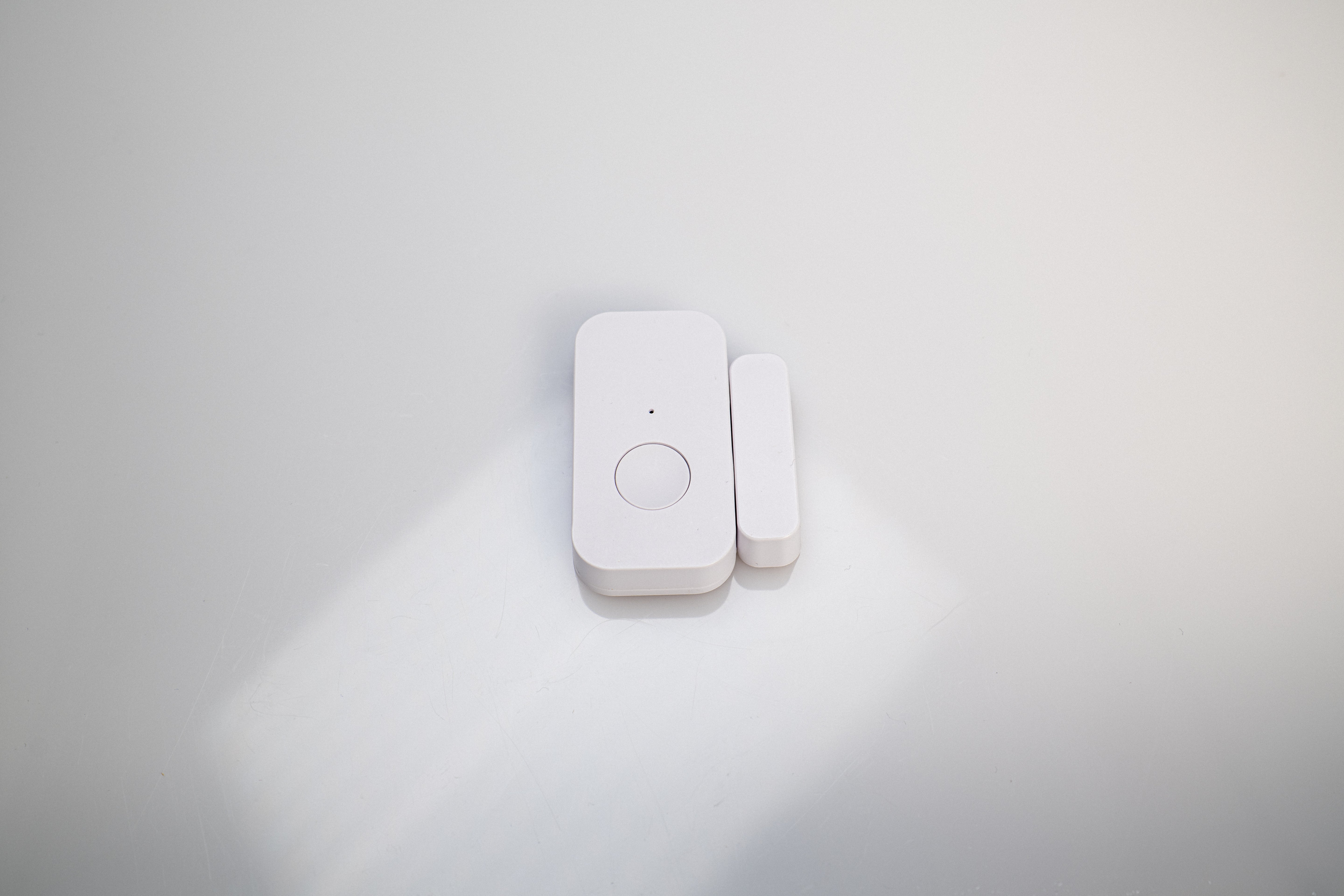

The Zigbee Door Window sensor is a wireless, battery powered contact sensor, compatible with the Zigbee 3.0 standard. The device can be operated intelligently via working with a Zigbee gateway to communicate with other devices. It is a Zigbee low‑energy wireless door/window sensor that makes you know the opening/closing status of door and window by separating the magnet from the transmitter. Connect it with the gateway which supports automation function and you can create a smart scene to trigger other devices.

Key Features:

• Wireless, battery-powered contact sensor (uses CR2032)
• Compatible with Zigbee 3.0 standard
• Reports open/close status via magnetic separation
• Enables smart home automation when connected to Zigbee gateway
• Low-energy operation; suitable for long-term use

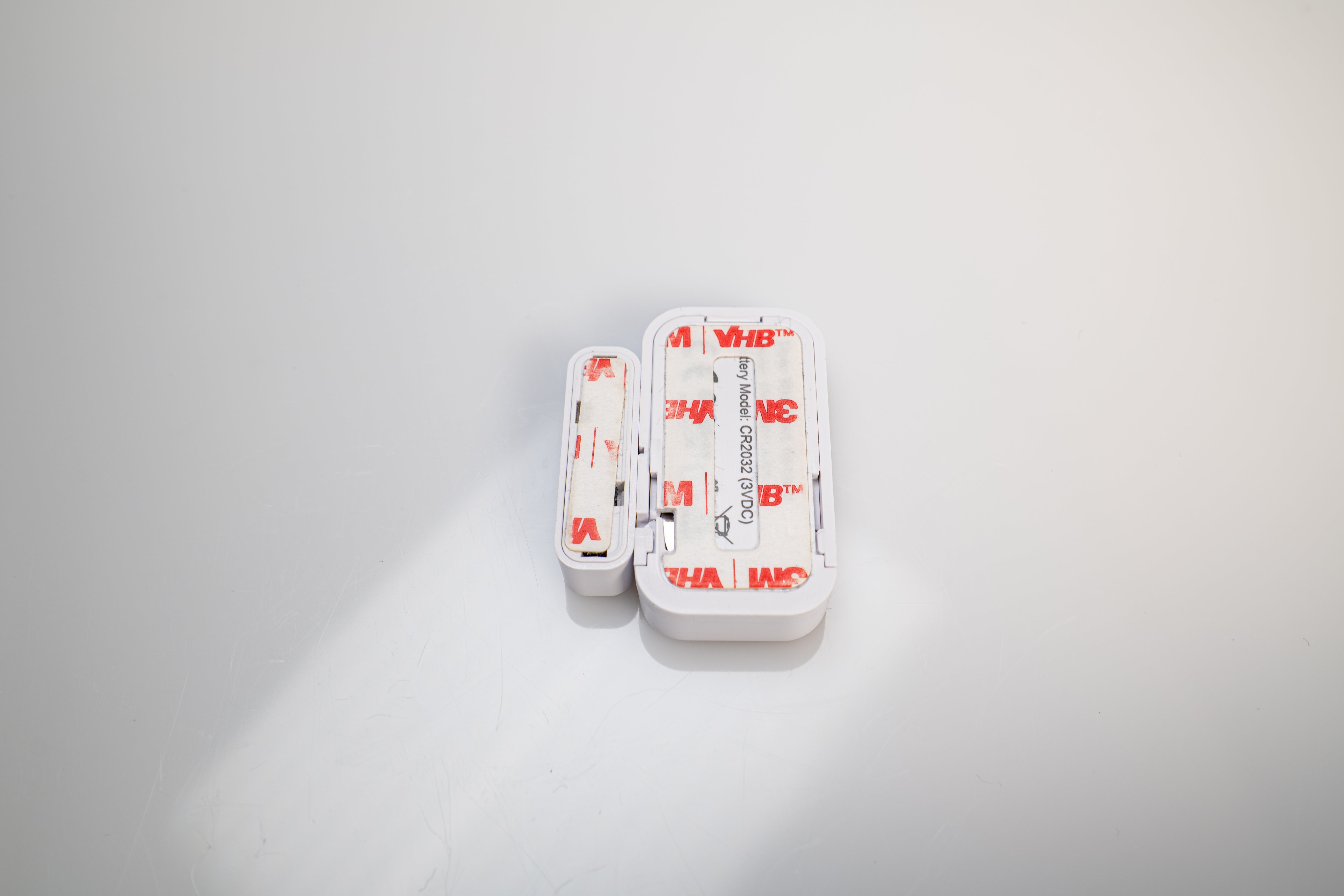

• Easy stick-on installation with included 3M stickers; maintains ≤10 mm gap between parts
• Compact dimensions: Transmitter 49 × 26.5 × 10 mm; Magnet 35.5 × 10.5 × 10 mm
• Operating specs: 2.4 GHz RF, 3 VDC CR2032, 0–40 °C, 8–80% humidity
