Microwave in ceiling motion sensor

The occupancy sensor is a 4 in 1 device that combines occupancy sensing, daylight harvesting, 0‑10 V dimming and Zigbee radio circuits. When used with 0‑10 V LED drivers, it enables any lighting manufacturer to deliver wirelessly‑controllable and sensor‑equipped fixtures. The sensor is suitable for high bay applications which need large detection area and sensor based automation.

Key Features:

• Zigbee 3.0 compliant
• Microwave motion detection with dual antennas and long detection range
• Daylight-harvesting ambient light sensing
• 0–10 V output for dimming LED drivers (Dim-to-Zero capable)
• Autonomous sensor-based control with scheduler support
• OTA firmware upgradeable

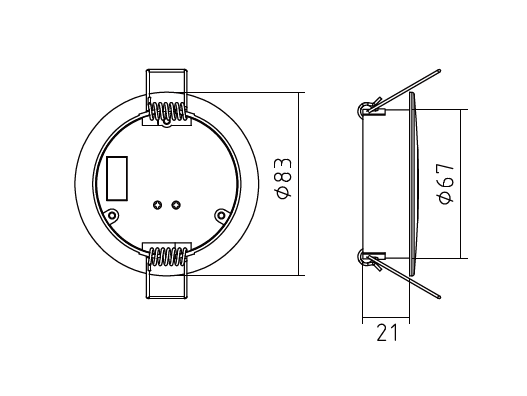

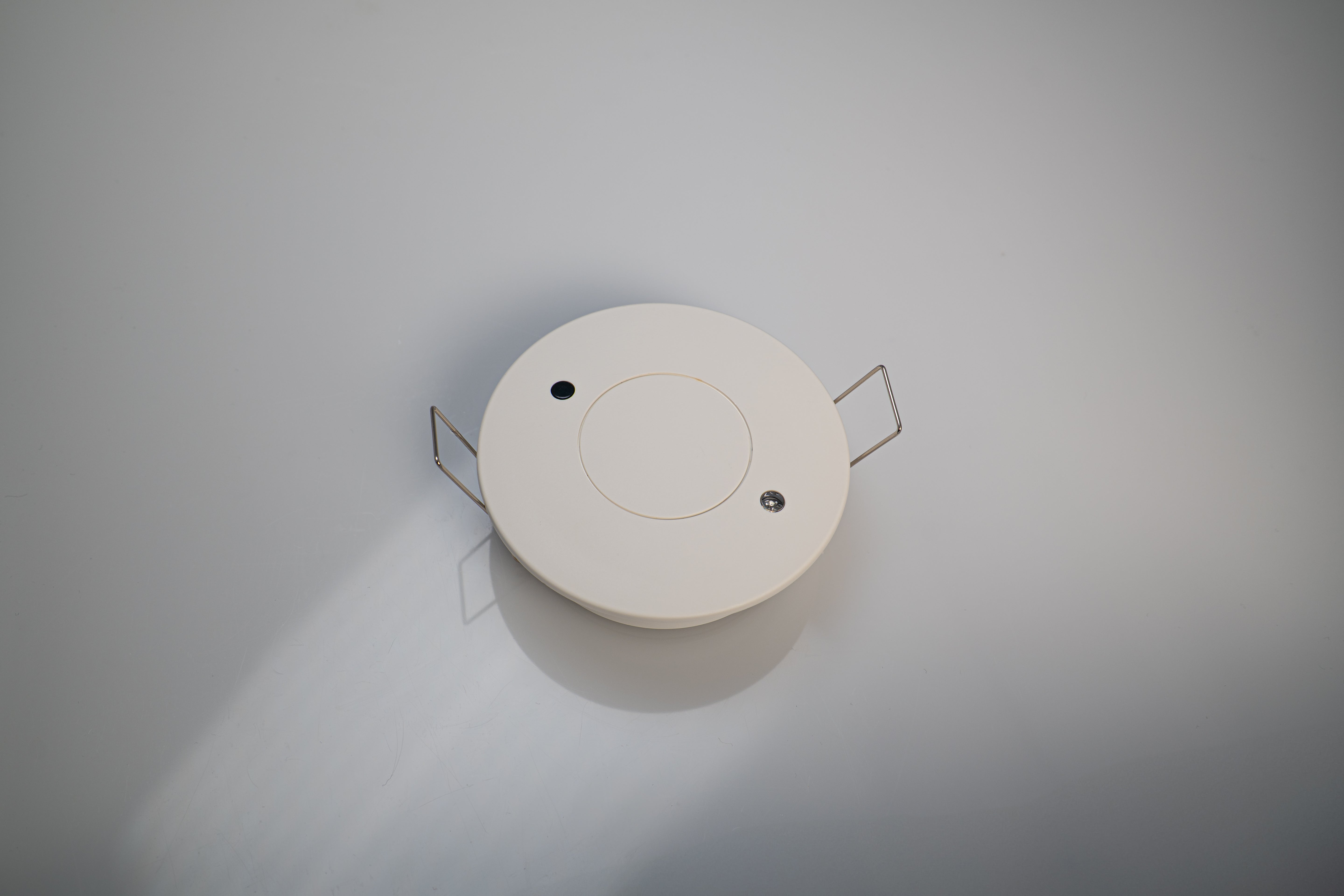

• Designed for ceiling-recessed installation
• Indoor-use only (IP20-rated)
