Single channel Zigbee enabled LED Driver Push compatible

This LED Driver is a single color constant voltage Zigbee LED controller for single color LED strip lights based on the latest Zigbee 3.0. It can search and pair to a Zigbee network and be controlled from your controller or hub interface. Internet remote control via smartphone, computer, or tablet extends control convenience. The Zigbee LED controller is compatible with universal Zigbee gateways or coordinators. Once compatible Zigbee remotes are added to the network, they can control the device. It also supports Zigbee Green Power, binding up to 20 Green Power switches directly without a hub. This push-compatible device can be controlled through an existing push switch even when no Zigbee signal is available. It is designed with DC 12–48 V input and a single-channel constant voltage output, delivering up to 8 A per channel (96 W @ 12 V, up to 192 W @ 48 V).

Key Features:

• Constant-voltage Zigbee LED controller with 1 channel, up to 8 A output
• Supports 2.4 GHz Zigbee 3.0 mesh networking
• Compatible with universal Zigbee gateways/coordinators
• Works with single-color Zigbee remotes via TouchLink
• Can connect with up to 30 Zigbee remotes

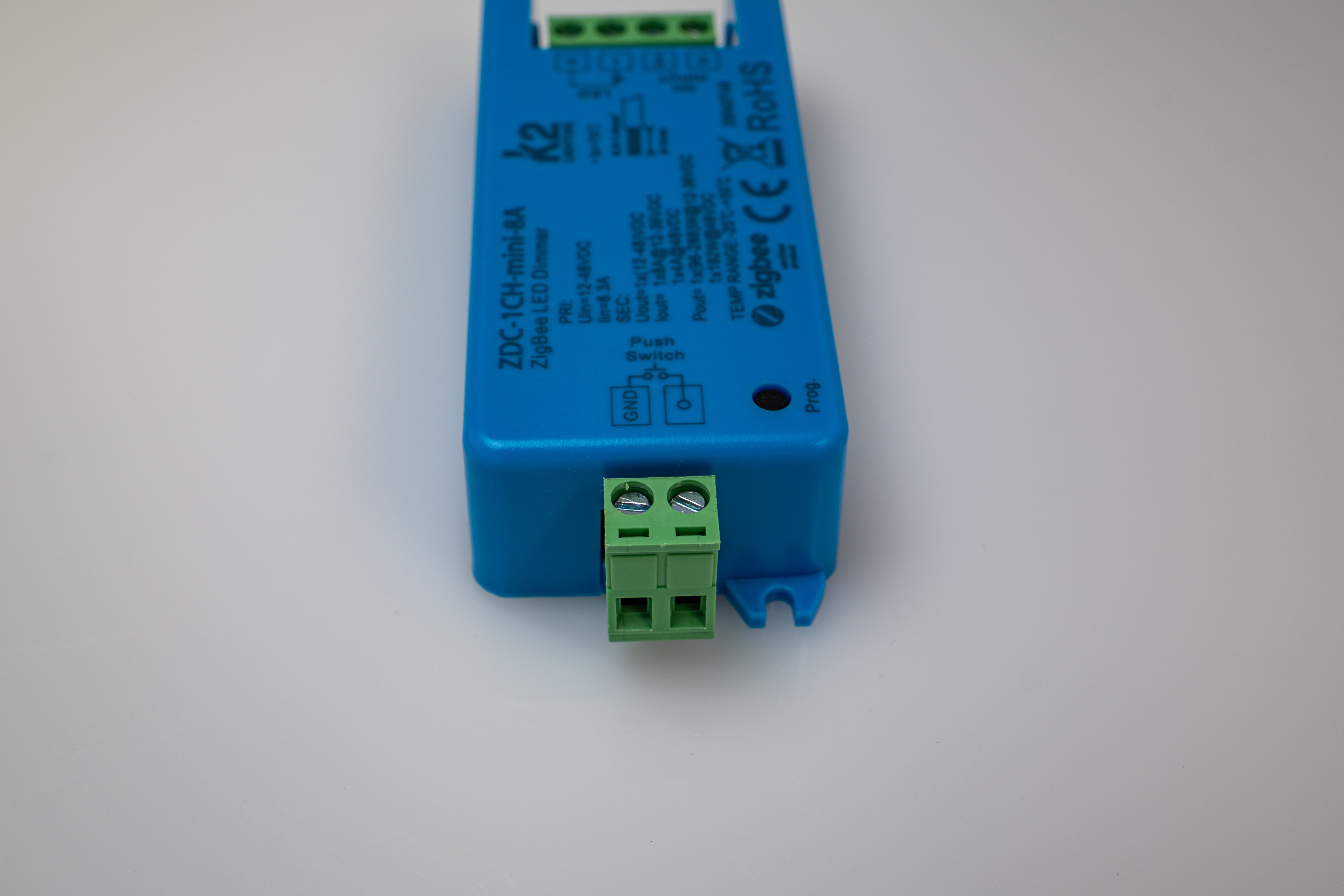

• Push-compatible: supports local manual override via existing momentary push switch
• Input voltage range: DC 12–48 V; supports various LED strip voltages
• Output current and power:
  • 8 A at 12–36 V (96–288 W)
  • 4 A at 48 V (192 W)

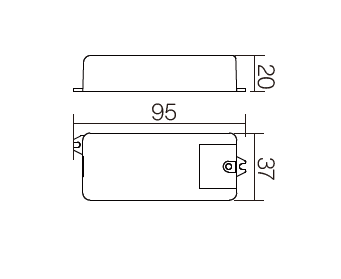

• Compact dimensions: 95 × 37 × 20 mm; designed for discreet installation
• IP20 rating (indoor use)
• Wireless range: up to 30 m line-of-sight
