Thin-Q

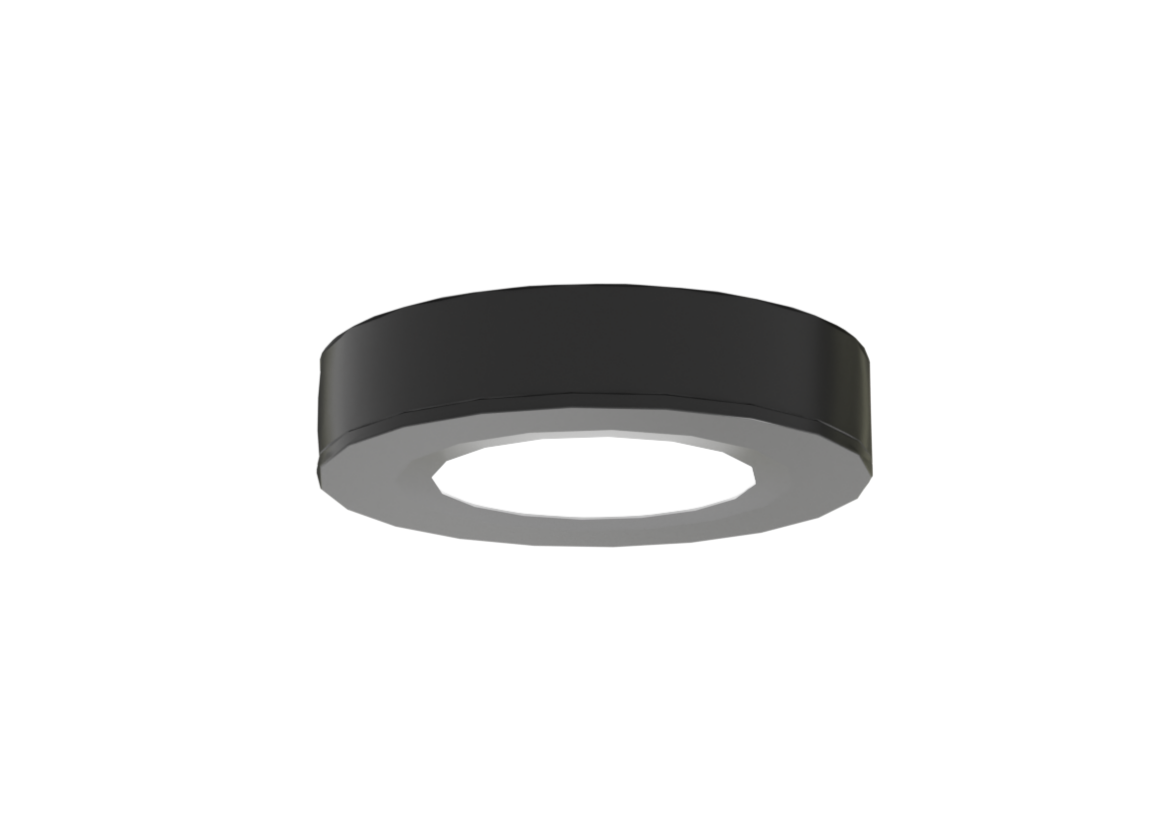

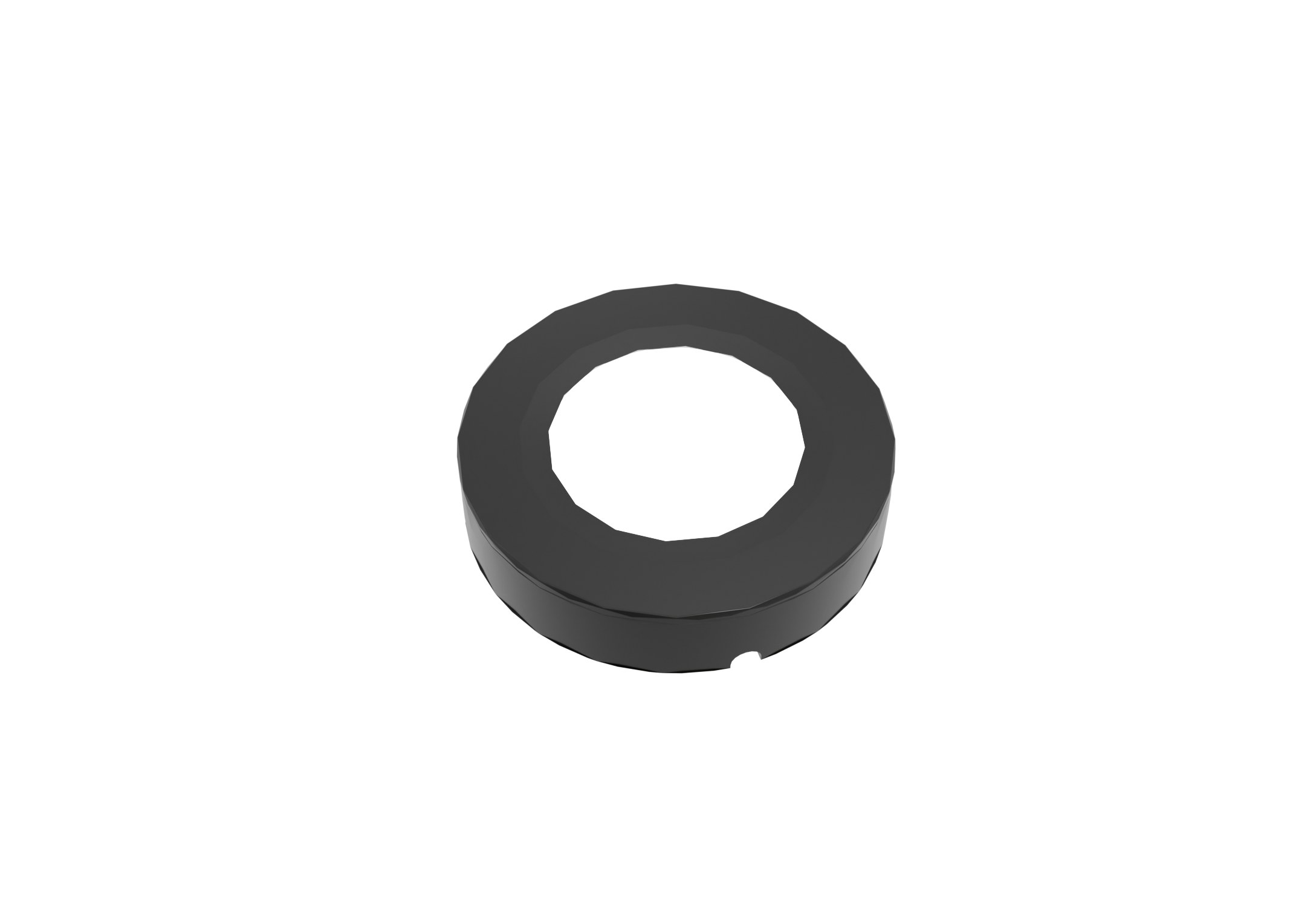

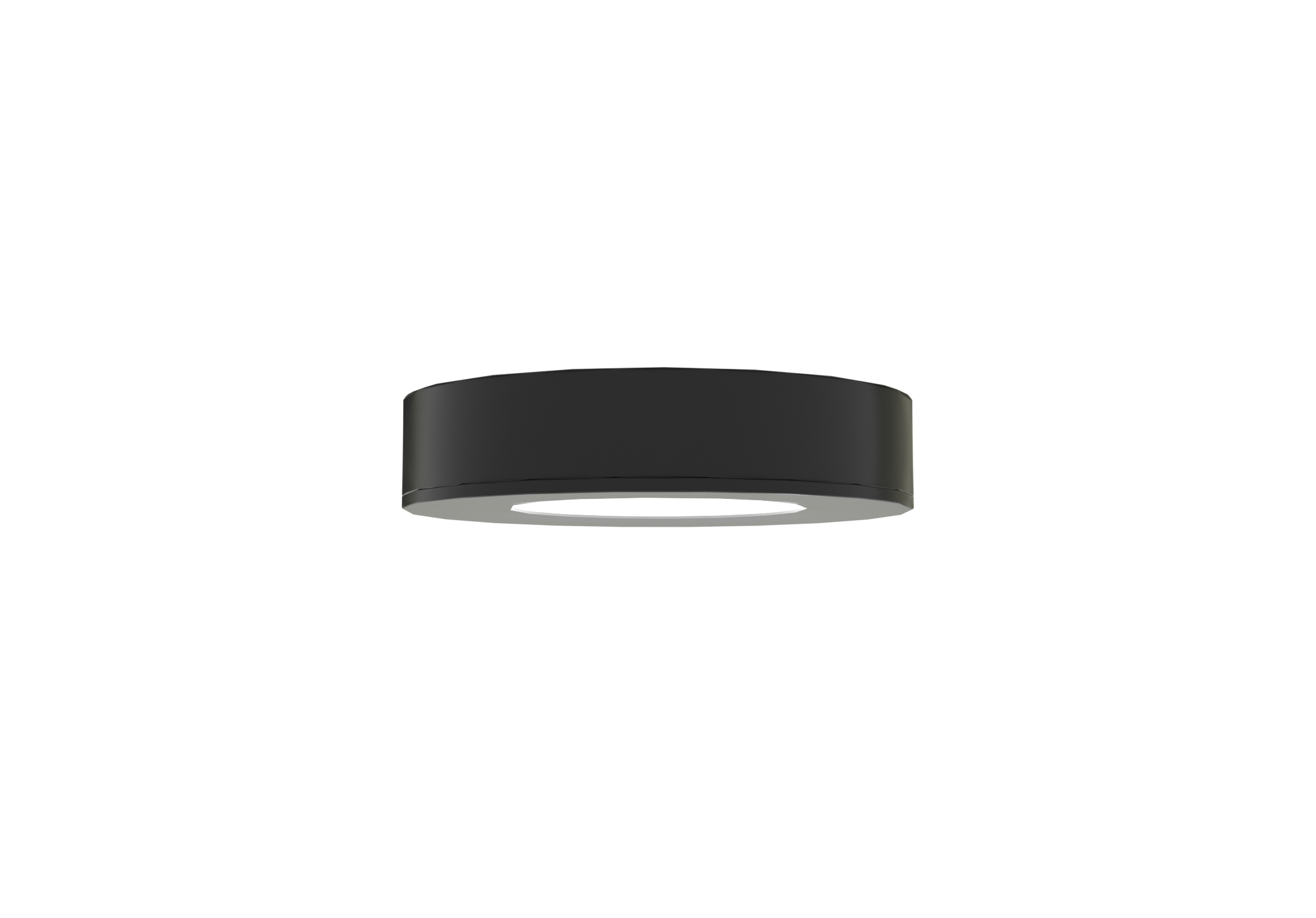

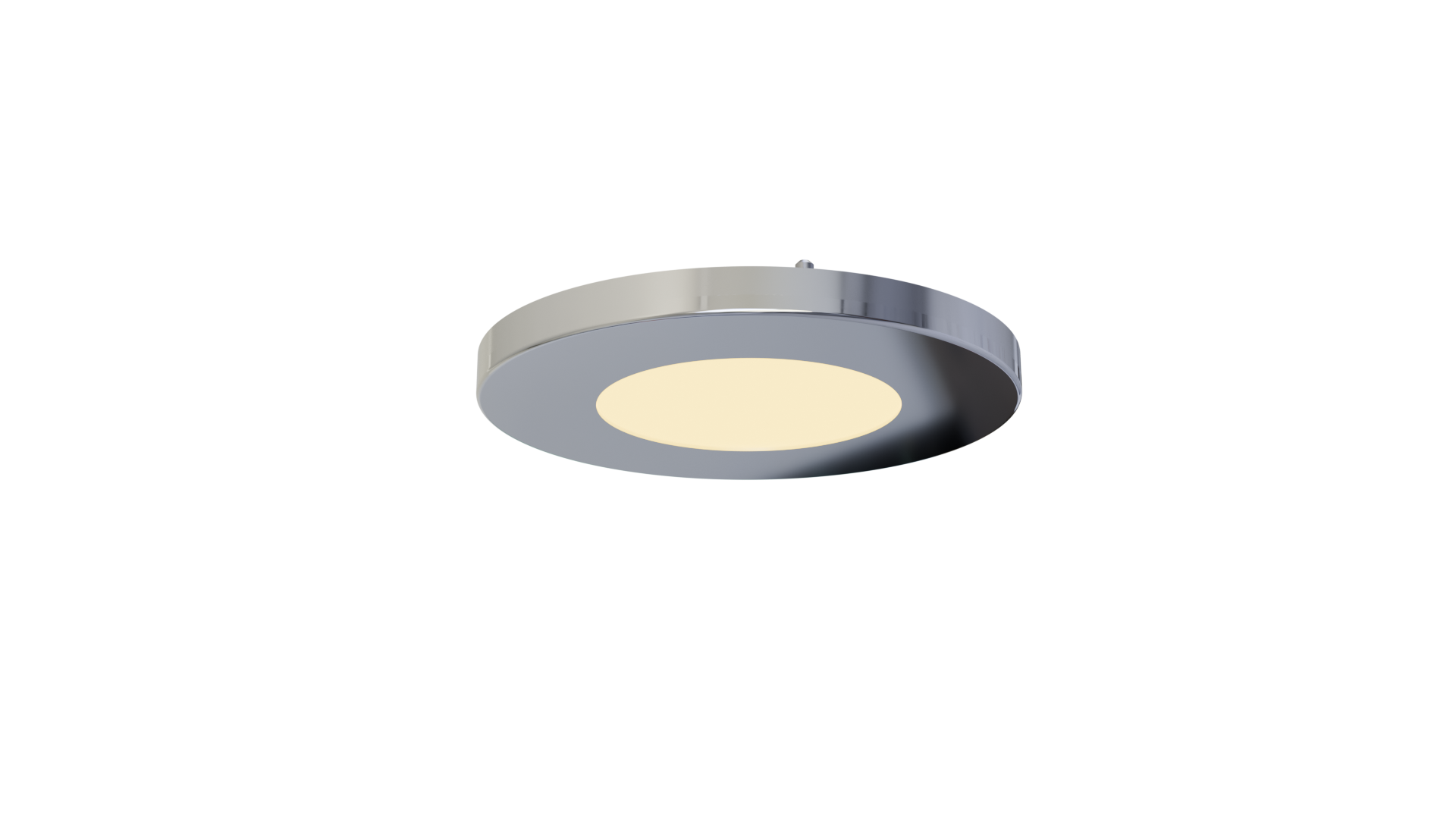

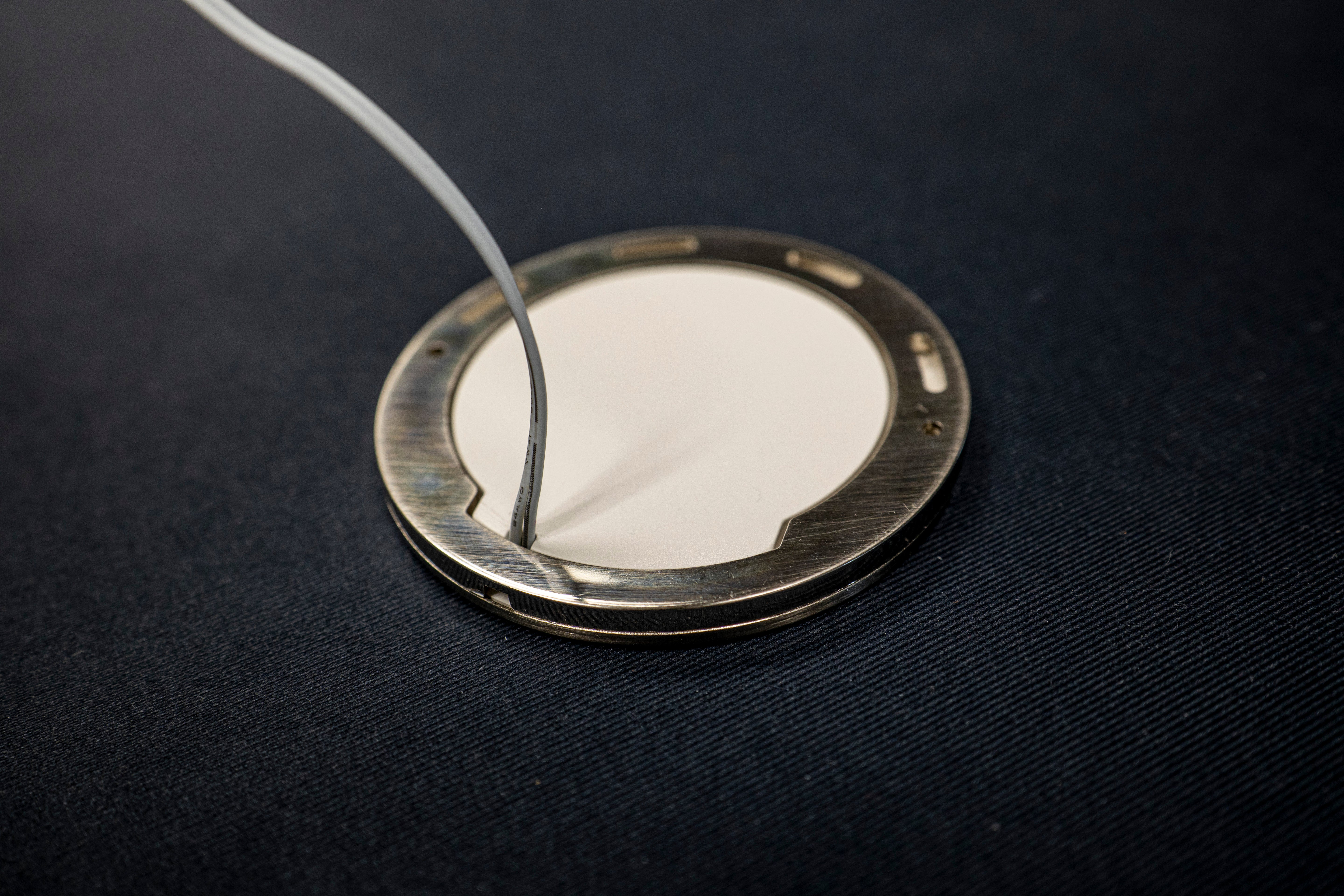

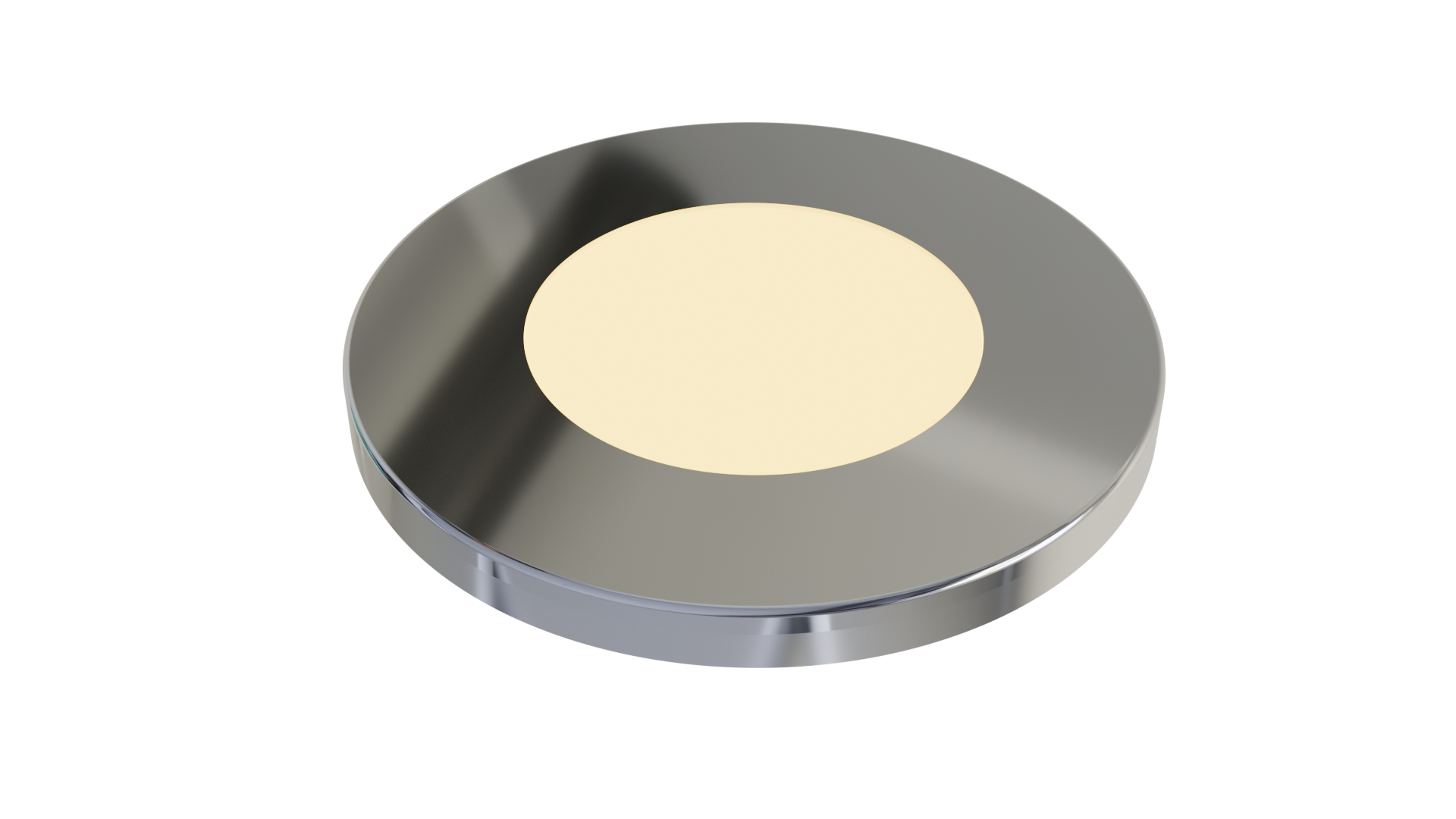

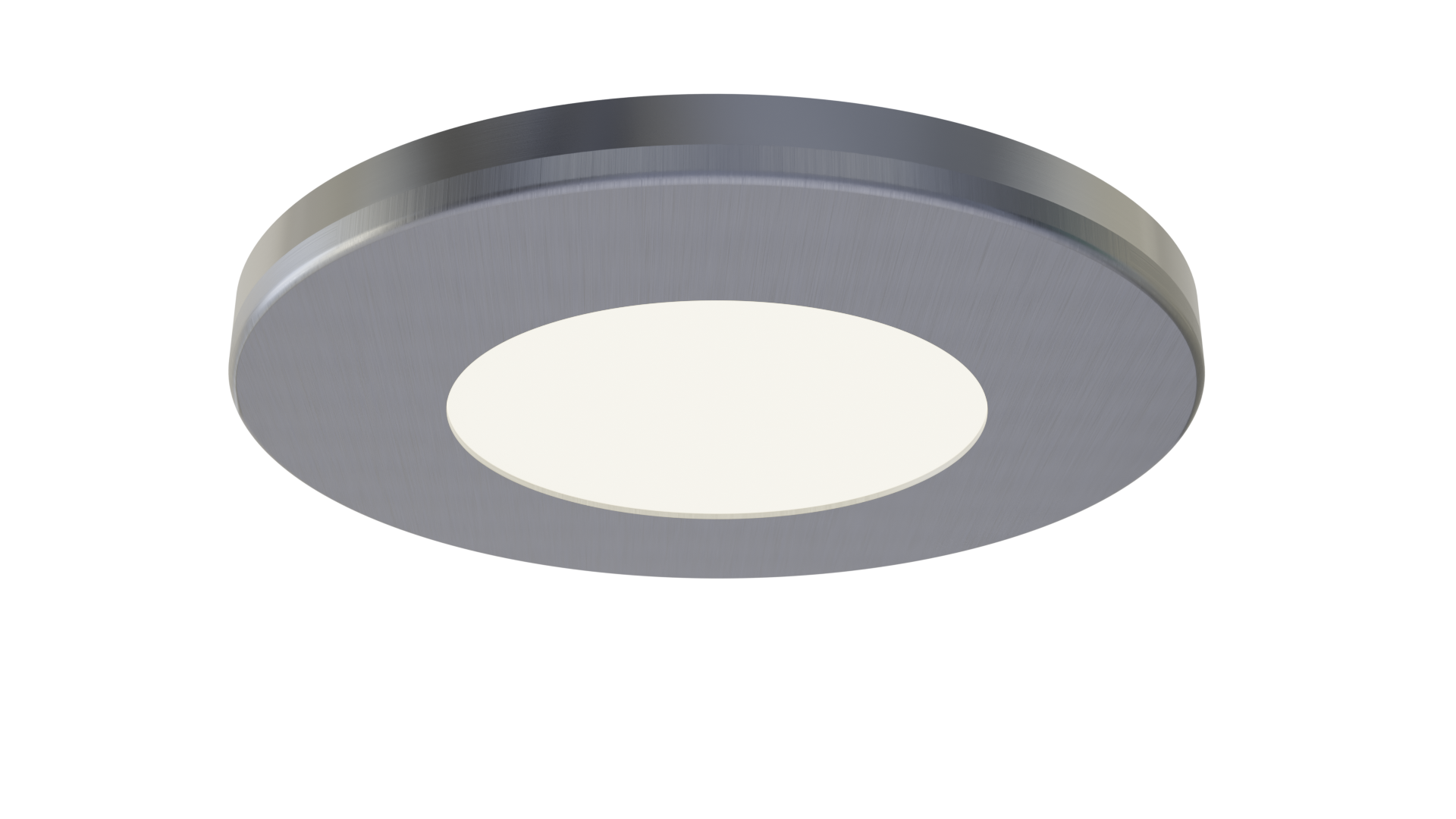

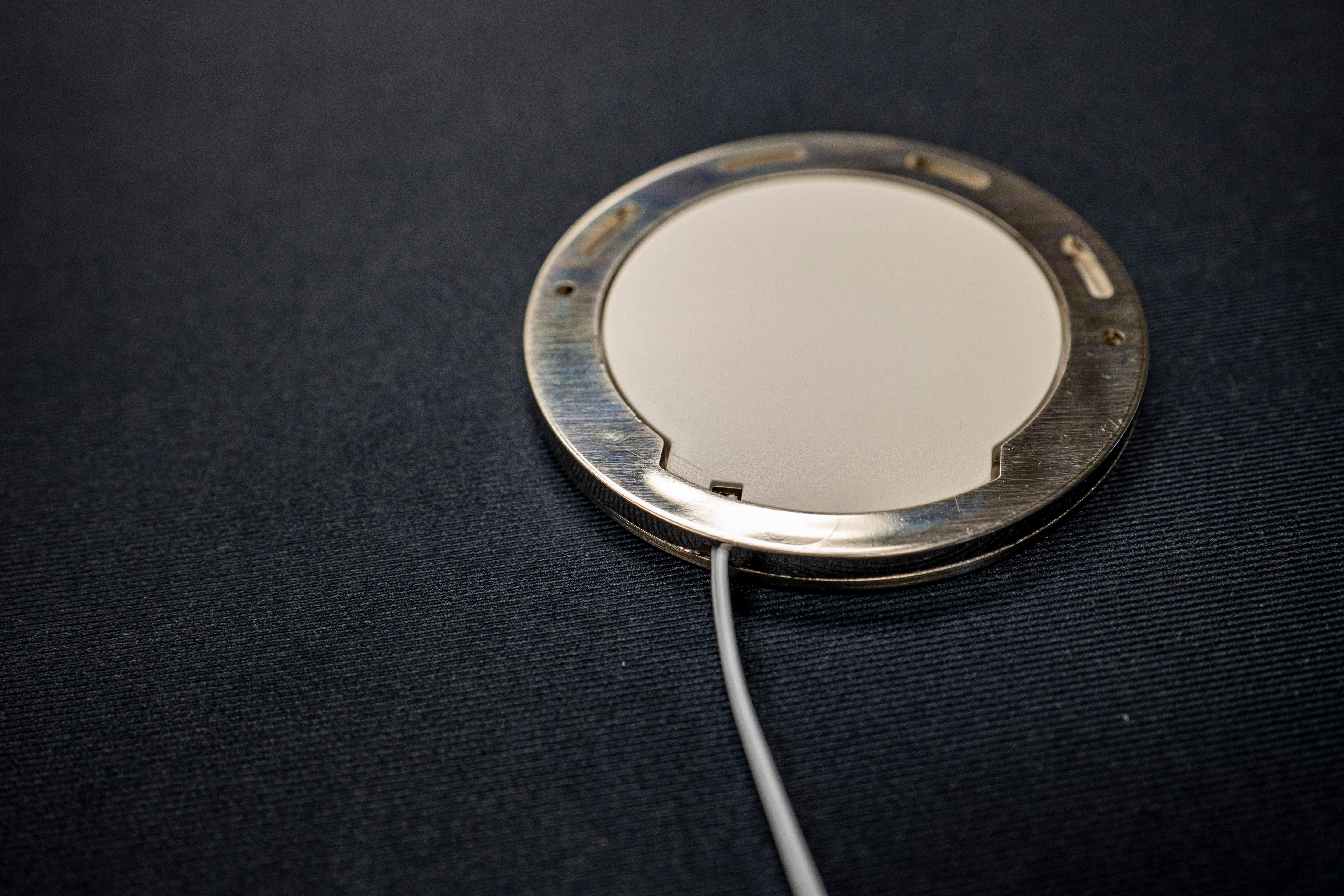

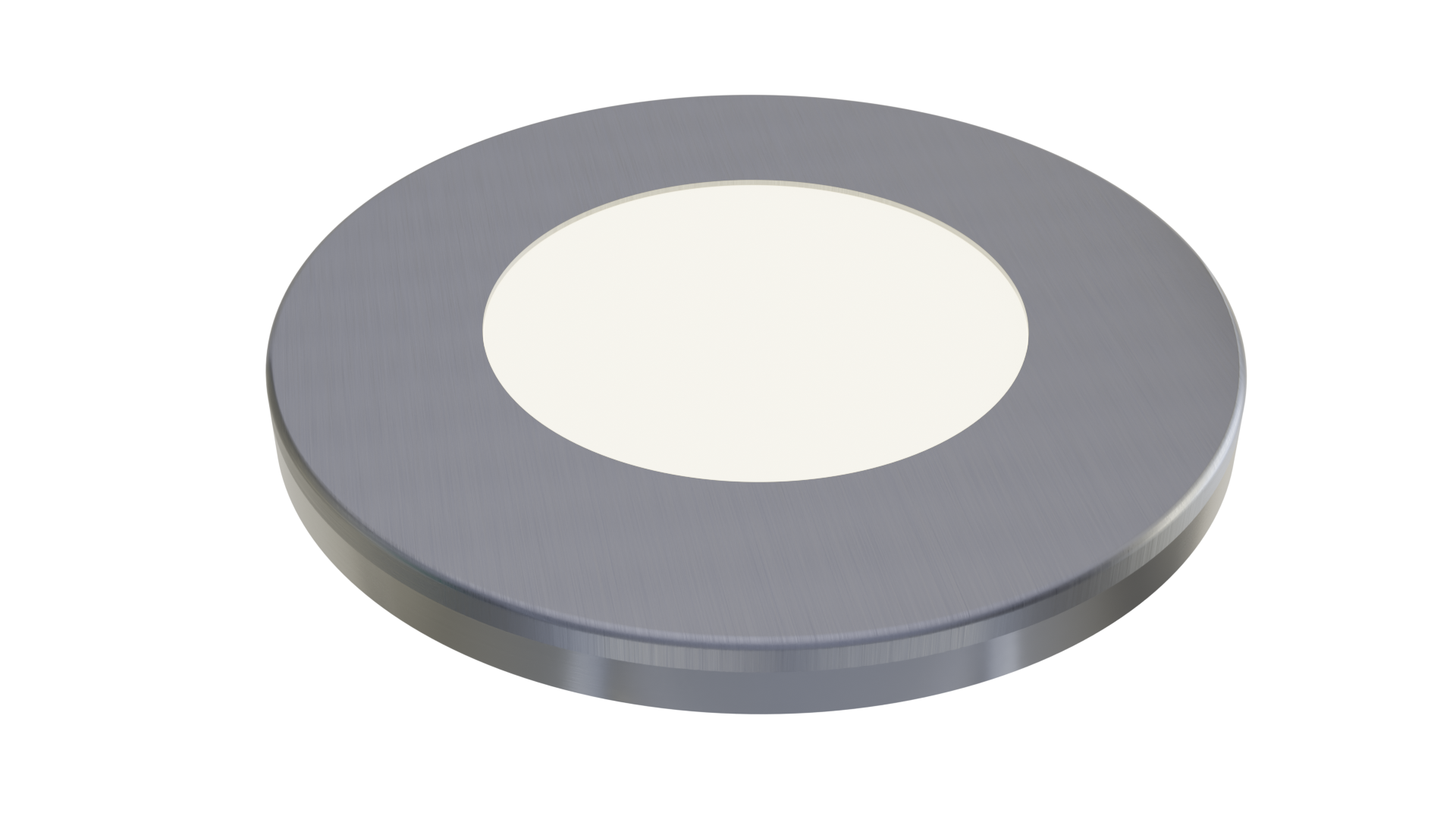

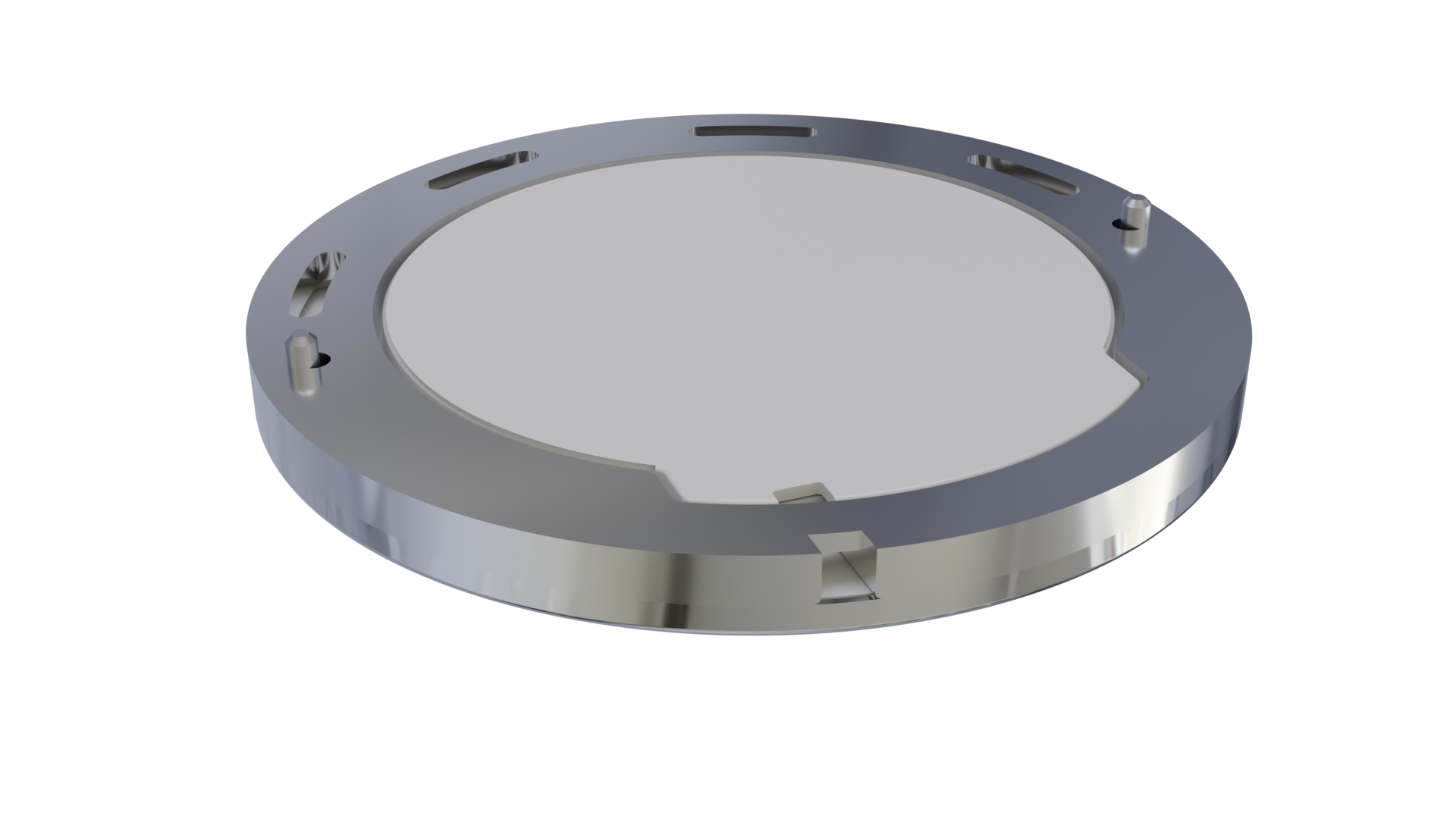

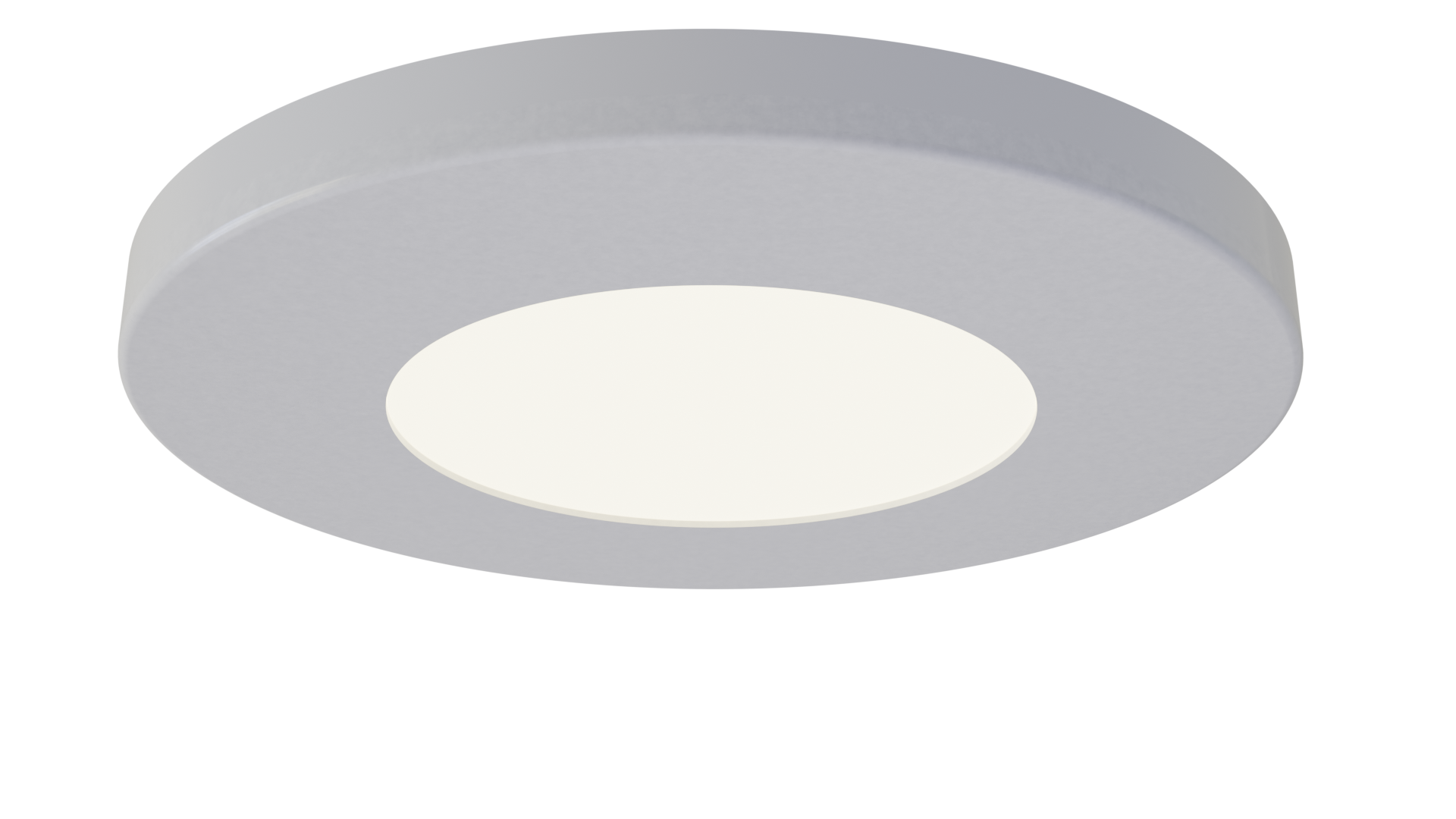

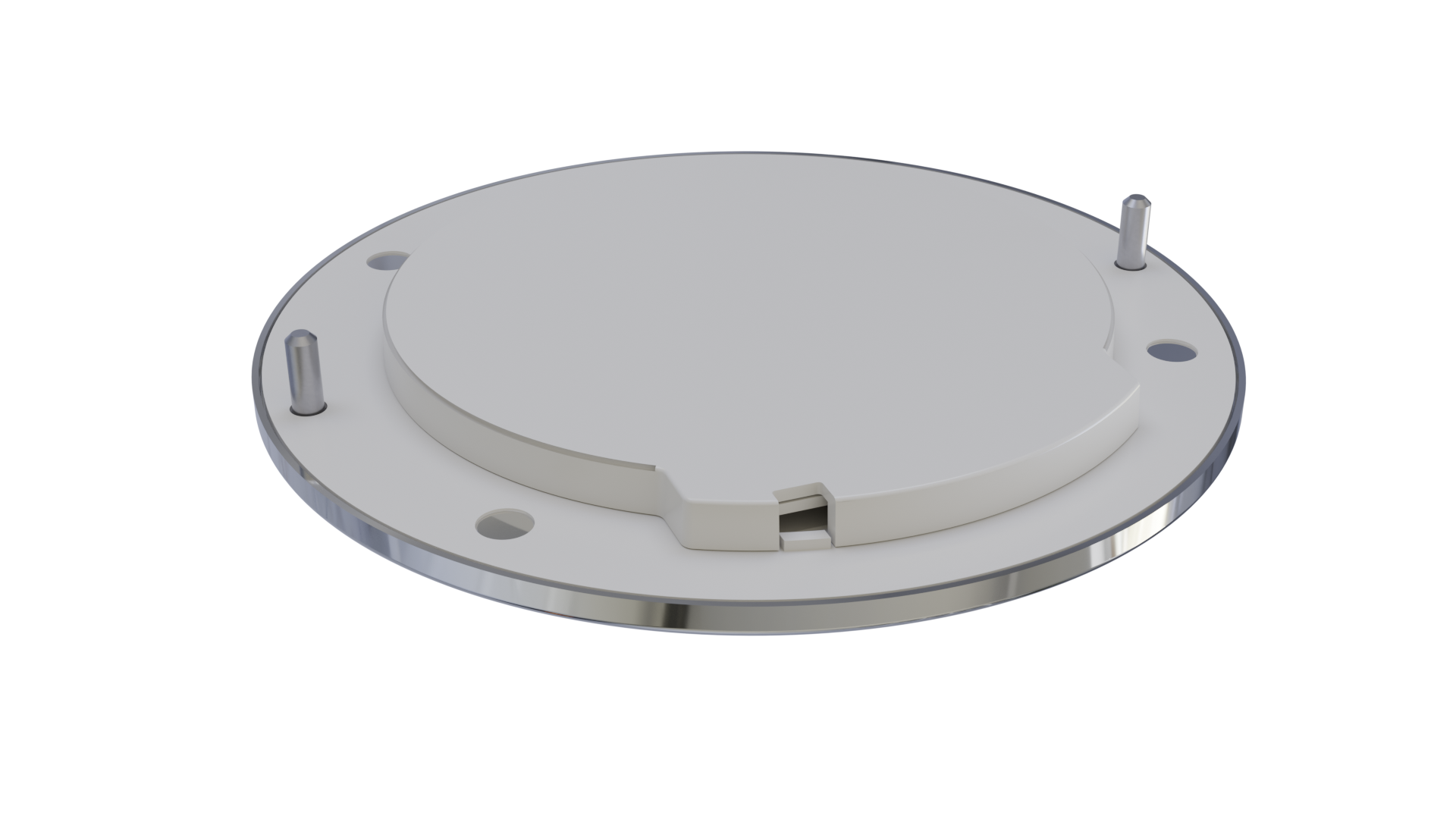

Thin-Q is a 3” Round or Square LED puck light that runs on a 24VDC system. It provides even illumination from a single light source. Optional 1-to-3 and 1-to-6 splitter patches are available for multi-puck installation.

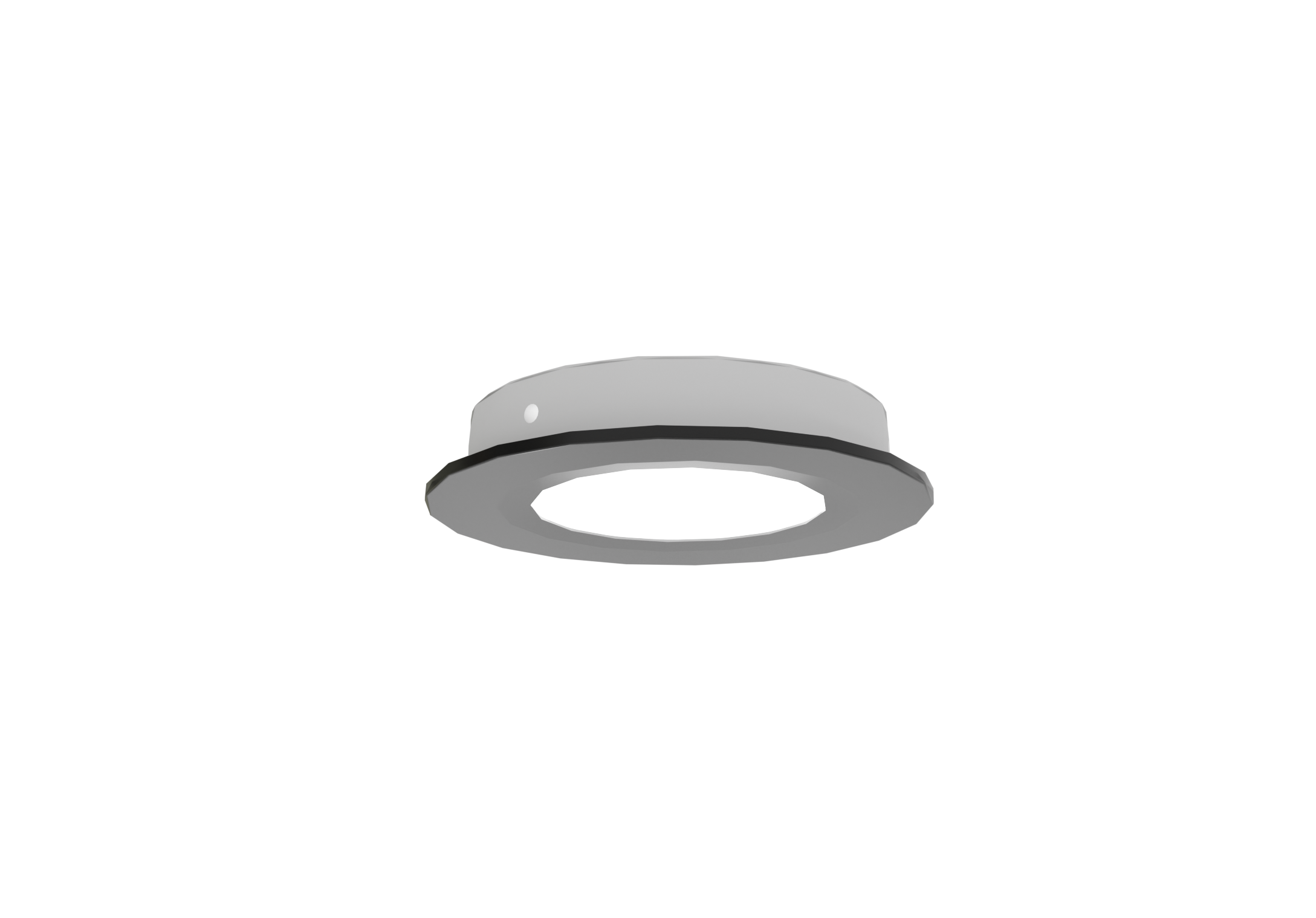

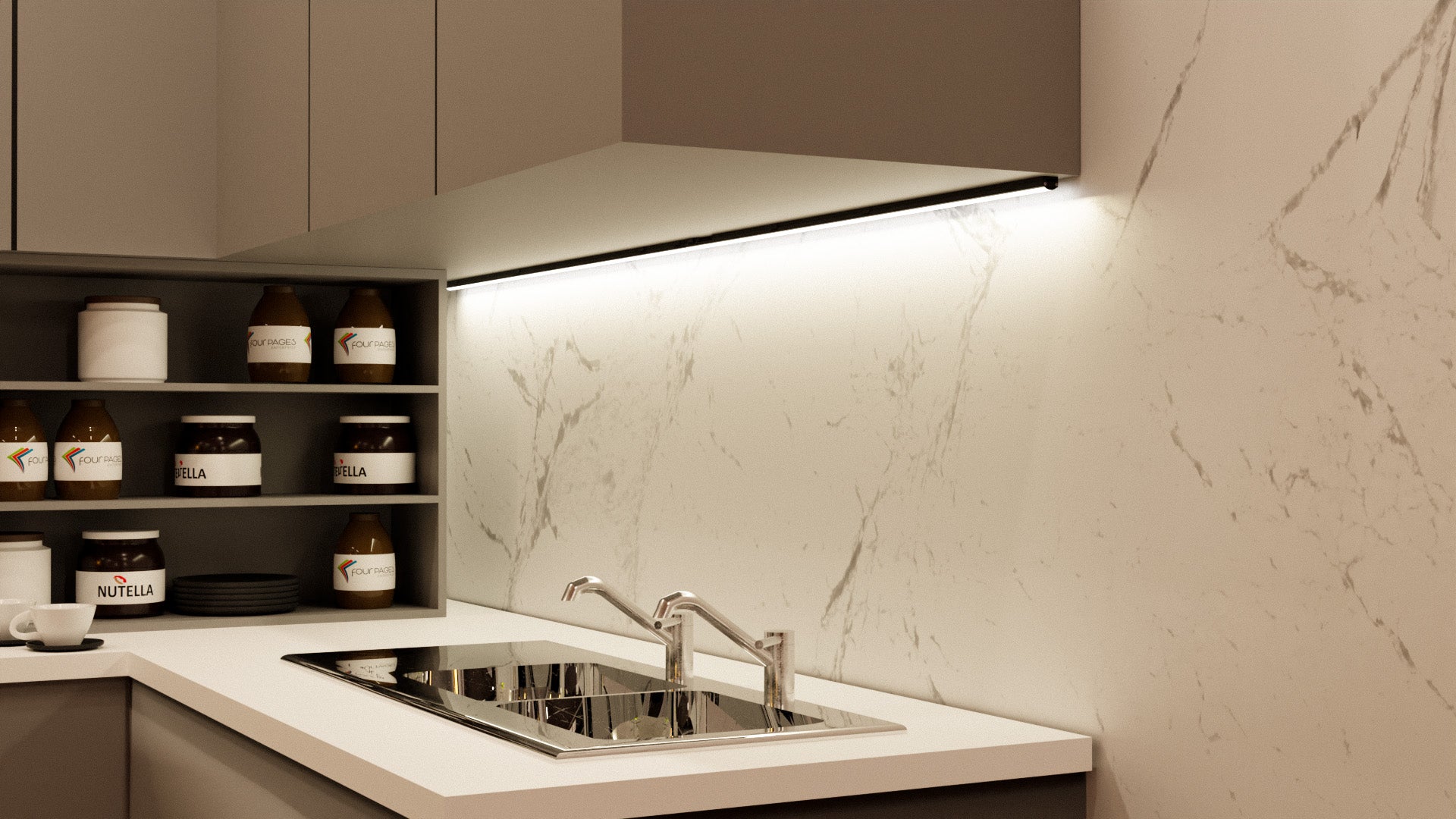

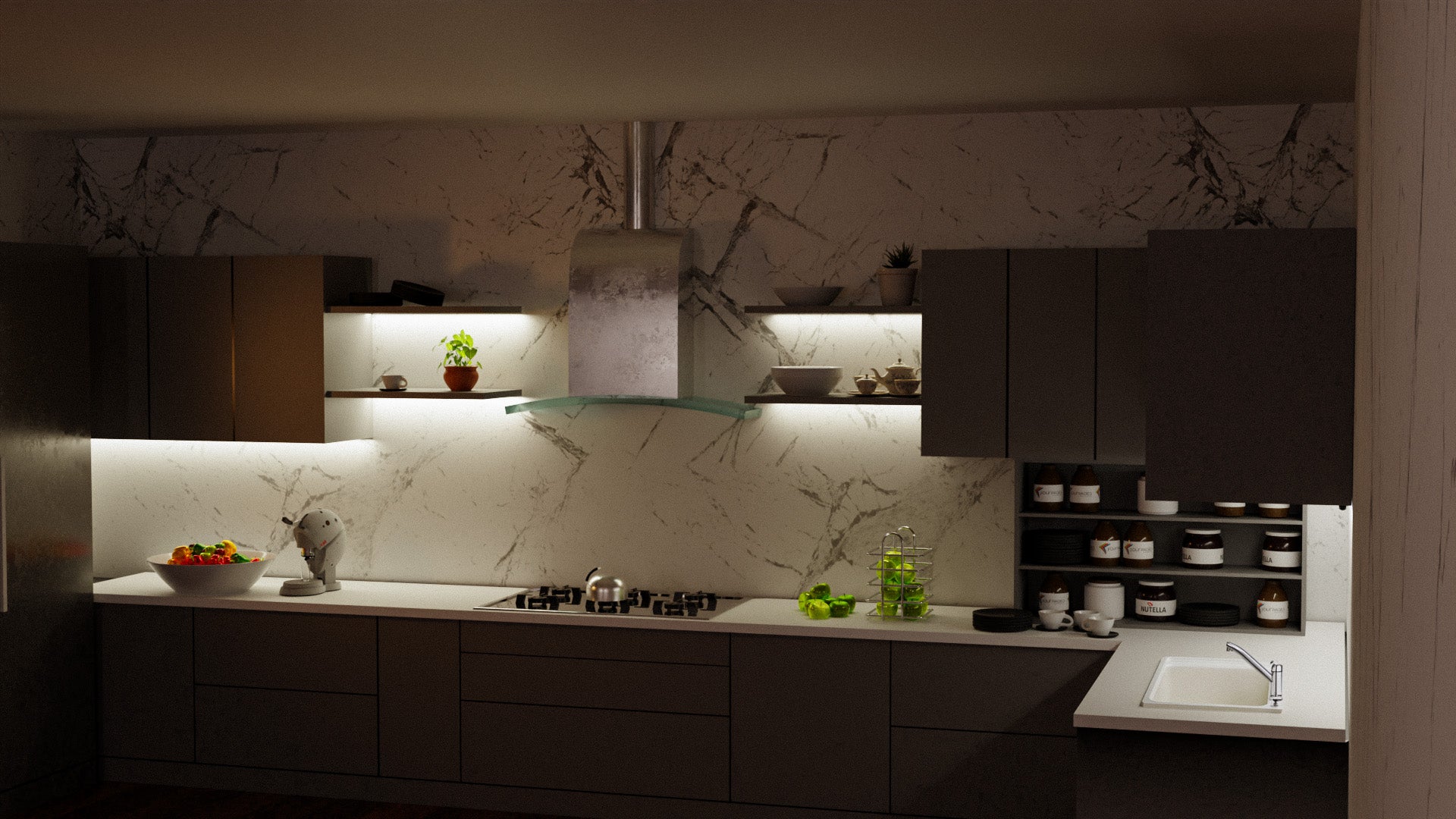

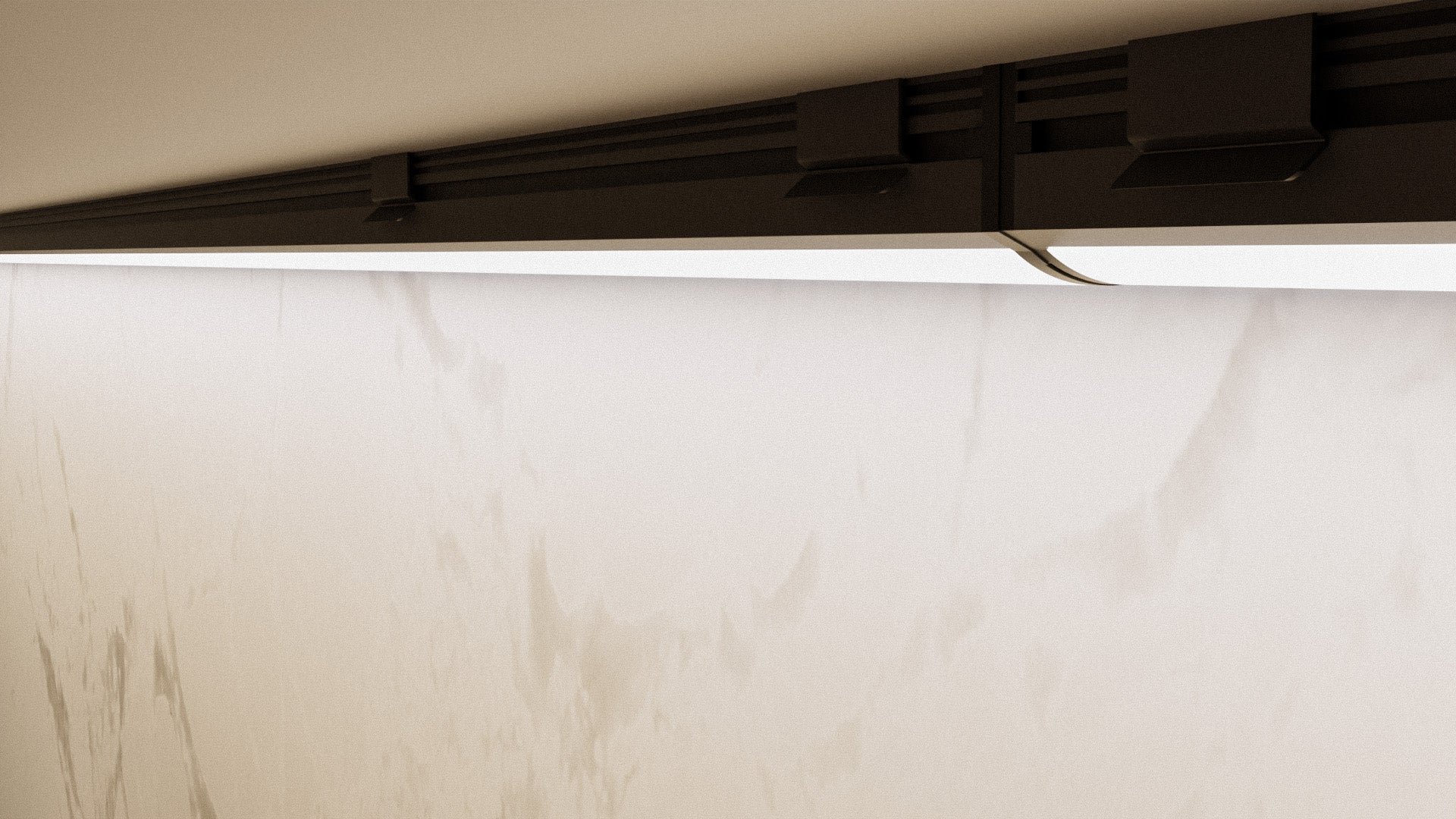

It is dimmable with any 24VDC constant voltage dimmable driver or a 24VDC PWM dimmer. It can be surface mount or recessed mount and is suitable for any under cabinet application.

It produces 200 lumens of light output at 3W and it comes with 3000K, 4000K and 5000K with CRI 80+. Optional 90+ CRI is also available.

Features:

• Input: 24V~28V DC input
• Power Consumption: 3W Thin-Q and- 2W Thin-Q Ultra

• Dimmer: Dimmable settings in 24VDC

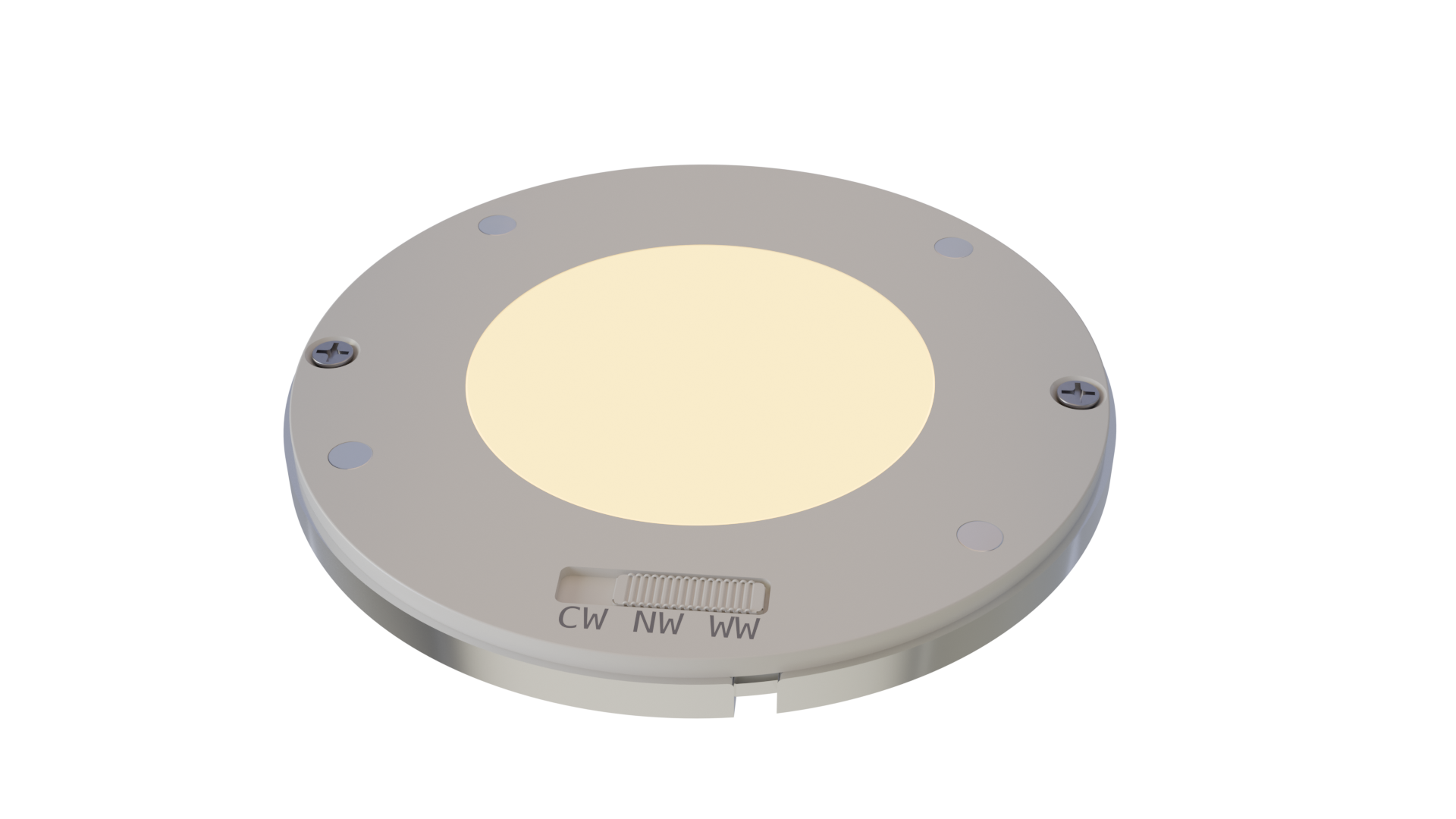

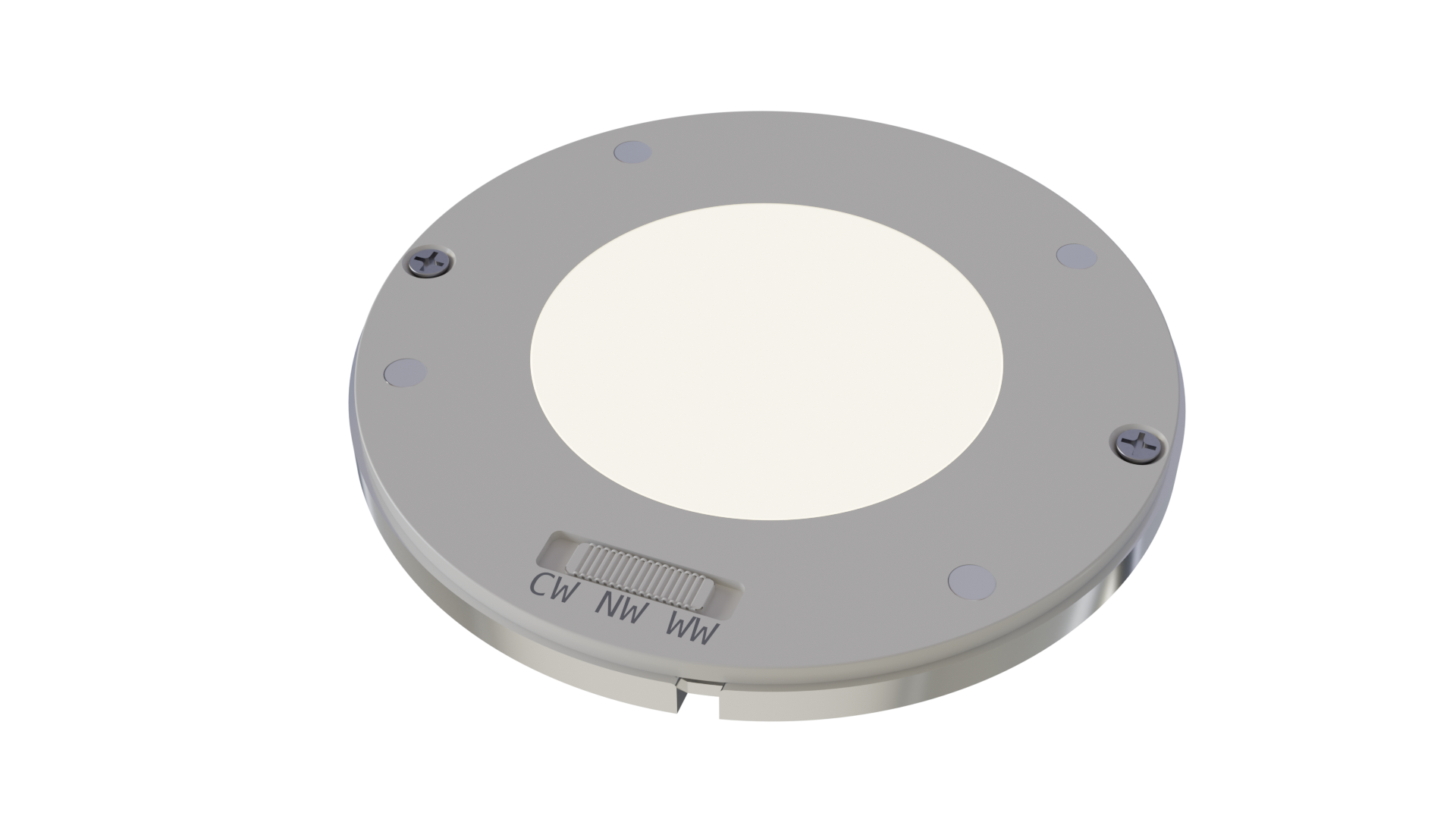

• White Selectable CCT: 3000K, 4000K and 5000K

• Lumens: 200 Thin-Q and 120 Thin-Q Ultra
• CRI: 80+, 90+
• Environment: Indoor

• Diameter: 1.56"

• Length: 1.11"

• IP Rating: IP20
• Package Dimensions:

  3.9"

  2.3"

  1.7"

• Shipping Weight: 3.1 oz.
